CAJOSMART™ Software

CAJOSMART™ – EMBEDDED LASER MARKING SOFTWARE FOR DEMANDING MARKING PROCESSES

CajoSmart™ is an embedded Laser Marking software designed by Cajo Technologies for demanding, high-speed and time-critical manufacturing processes. The flexible software can communicate seamlessly with machine and production line control systems.

Combined with the laser marking system and the powerful core of the software, Cajo Control Board™, CajoSmart™ enables complete control of the marking process. No PC is needed on the production floor thanks to Cajo’s capable control system.

The revolutionary solution provides first-class markings in hectic manufacturing environments. The typical application is a high-speed 24/7 production line where markings are done on-the-fly and high reliability is required.

The marking content and parameters can be changed from other systems using integration interfaces. CajoSmart™ generates dynamic track and trace marking content such as 2D codes, barcodes, and texts from given data automatically. The marking content can contain, for example, fixed texts, logos, timestamps, counter values, and data received from the integration interface. The marking parameters for each material and product can be stored in the system.

CajoSmart™ can be operated via the CajoSmart™ UI, Web UI, or by executing remote commands through integration interfaces. The user interface and integration interfaces have the same functionality available, including setting marking content, adjusting marking parameters, and controlling the marking system.

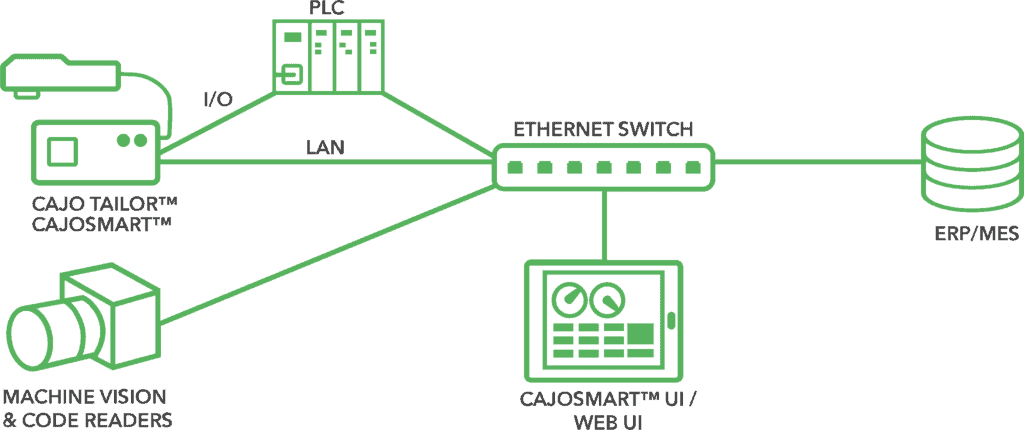

CajoSmart™ provides TCP/IP JSON and OPC UA server integration interfaces. This allows, for example, another automation system, such as PLC, robot, or MES, to control and monitor the operation of Cajo’s laser marking system. The CajoSmart™ I/O interface provides system status information and inputs for marking triggering. The CajoSmart™ user interface (UI) enables synchronized control of multiple CajoSmart™ Laser Marking Systems at the same time.

CAJOSMART™ – EASY TO INTEGRATE, EASY TO USE

Implementing the Cajo Laser Marking System and the embedded CajoSmart™ software on the production lines is designed to be as seamless as possible. Well-documented interface descriptions and easy-to-use user interfaces provide fast implementation to any manufacturing process.

Creating laser marking content with CajoSmart™ is intuitive and straightforward for operators in daily production.

CajoSmart™ can be operated via the CajoSmart™ UI, Web UI, or by executing remote commands through integration interfaces. The user interface and integration interfaces have the same functionality available, including setting marking content, adjusting marking parameters, and controlling the marking system.

BASIC FEATURES

• Variable text and coding
• Automatic sequencing, timestamps, etc. are available
• Multirow text marking or template-based content
• Any vector graphics or logos can be added to the marking
• Comprehensive user manuals with minimal training required
• Industry 4.0 capability and continuous software development
• Factory-calibrated system with matching design and marking dimensions

USER INTERFACE (UI)

• Multilingual CajoSmart™ UI (option) optimized for touchscreen operation
• Multilingual and platform-independent CajoSmart™ Web UI (option)
• Multiple lasers can be controlled with one CajoSmart™ UI
• Enables a 3rd party to create their own UI by using Cajo integration interfaces

CAJO INTERFACE

• I/O
• TCP/IP (JSON)
• OPC UA
• Common industrial communications protocols, such as Profinet, with additional adapter

Download the CajoSmart™ brochure below to learn more!
