- Machines compliant to 2006/42/CE standard
- Bending rolls independently adjustable, for double pre-bending capability on the leading and trailing end of symmetrical profiles
- 3 driving rolls to guarantee maximum drive on the profile
- Lateral guide rolls with three-dimensional adjustment
- Standard bending rolls of alloy steel, heat treated to surface hardness 60 HRC
- Modular rolls that allow the bending of most profiles
- Free standing remote control station to control the machine in safety
- Possibility to install the machine both in vertical and horizontal position
- Torque limiter installed on top roll shaft
- One-piece fabricated steel frame
- Shaft and pinions installed on high dynamic load roller bearings
- Gears coupled directly on splined shaft
- Water based environmental friendly paint
The Serie 3000 Model 302 takes over where the Serie 3000 Model 301 leaves off. The section modulus is increased to 3.5 cm³ compared to the 1.5 cm³ processed by the Serie 3000 Model 301. The upper and lower shafts are of 40 mm diameter. The bending rolls are of 145 mm diameter. The processing is driven by a 2.8 kW drive which allows a rolling speed of 5.5 m/min. The overall weight of the machine is 495 kg. As with the rest of the range the bending rolls are independently adjustable. Therefore the leading end and the trailing end of symmetrical profiles can be pre-bent.

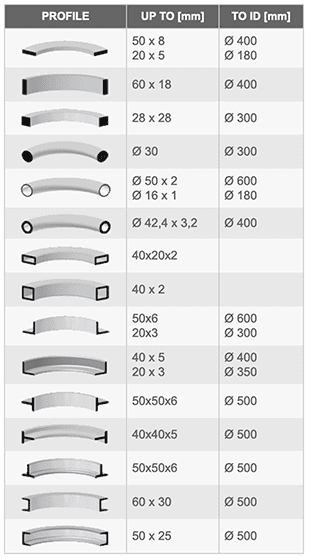

Technical Specifications
